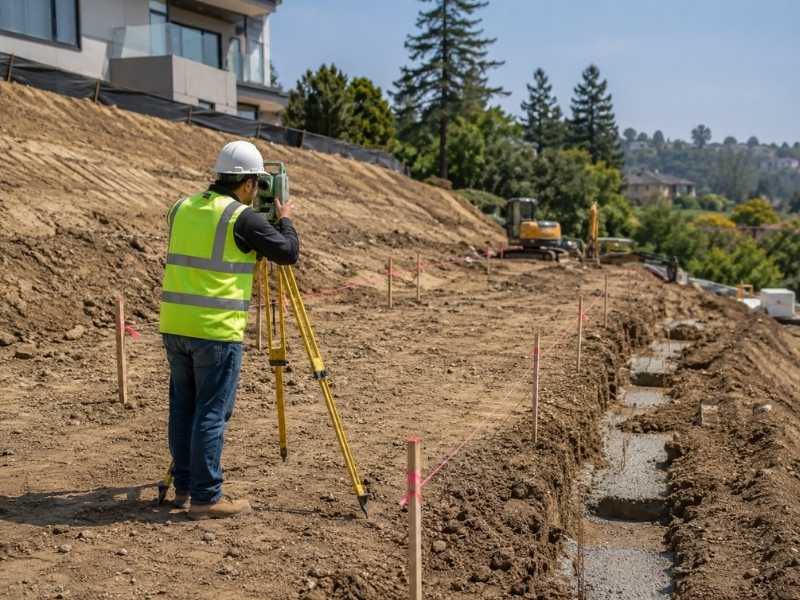

Construction surveyor layout checks help ensure a retaining wall is built in the correct location before excavation and construction begin. On sloped sites, the wall’s alignment and elevation must match the approved plans so it works properly with the surrounding grading, drainage, and nearby improvements. Before work starts, the surveyor establishes accurate control points and layout information for the contractor to follow. Verifying these details early helps identify potential layout issues before they become costly corrections during construction.

Reviewing the Retaining Wall Plans Before Field Layout

Before any stakes go in the ground, the construction surveyor studies the approved plans. This means the wall’s line, its dimensions, the elevation data and the control points the design is built on. The surveyor also checks for plan revisions, since a wall detail may have changed after the first set of drawings.

The goal is to catch trouble on paper, not in the dirt. Plans don’t always agree with each other. One sheet may show the wall in a slightly different spot than another. An elevation might be missing at a key point. The surveyor finds these gaps and gets them cleared up before the layout begins.

This review protects the whole job. If the surveyor skips it, a field crew may have to guess at a fuzzy detail, and the wall can end up in the wrong place. Fixing that after excavation is slow and costly. By reading the plans closely first, the surveyor makes sure the field markings match what the design really wants. Then the crew can dig and build with clear direction.

Establishing Reliable Survey Control on a Hillside Site

Every layout starts from survey control. Horizontal control gives the side-to-side reference, and vertical control gives the up-and-down reference for elevation. The surveyor lays out the whole retaining wall from these fixed points, so they have to be right and they have to last.

A hillside makes that harder. Steep ground is tough to walk and tough to measure across. Active grading moves dirt all day, and a stake in the wrong spot gets buried or knocked out. Loose, disturbed soil won’t hold a point still. Limited access means crews and equipment crowd the few paths that work.

Because of this, the surveyor is careful about where control goes. Each point needs to stay put, stay visible and stay usable from the start of the job to the end. That often means setting control off to the side, on firmer ground, above or beyond the work zone. Solid control placed with care keeps every later measurement on the wall trustworthy.

Checking the Wall’s Horizontal Alignment and Offset Stakes

Next the surveyor marks where the wall’s line runs across the site. This is the horizontal alignment, the path the face of the wall will follow. On a curved or stepped wall, the surveyor marks the line so the contractor can see its exact shape on the ground.

Stakes set right on the wall line don’t survive long. The moment crews clear brush, dig the trench or drive equipment through, those marks get wiped out. To fix that, the surveyor sets offset stakes. These sit a set distance away from the wall, off to the side of the digging, where they stay safe.

Offset stakes are how the contractor finds the wall again. Each stake shows how far over the true wall line sits, so the crew can measure back to it at any time. This is one of the key ways construction staking services help keep the wall aligned after excavation begins. After the area is disturbed, the offsets remain available so the contractor can recover the correct wall position and continue building along the planned line.

Verifying Wall Elevations Along the Changing Slope

Elevation is just as important as the line. The surveyor checks the design heights at the points that matter most: the wall base, the footing, any steps, the grade breaks and the top of the wall. Each of these has a planned elevation the contractor has to hit.

A hillside wall rarely sits at one flat height. As the ground rises and falls, the wall rises, drops or steps to match. That means one level mark isn’t enough. The surveyor sets several elevation references along the wall, so the crew has a correct height to build to at each part of its length.

This matters because the wall ties into the slope around it. The footing has to sit at the right depth. The top has to meet the finished grade the way the plans show. If the elevations are off, the wall can end up too tall in one spot and too short in another. Checking the heights at each key point keeps the wall matched to the slope from one end to the other.

Rechecking the Layout as Excavation and Construction Progress

Layout isn’t a one-time job on a retaining wall. The surveyor often comes back to check the work at more than one stage. Common points are after the excavation, before the footing goes in and as the wall itself rises section by section.

A lot can change between visits. Field conditions shift as dirt moves. A design revision may come through mid-job. Stakes get bumped, buried or pulled by mistake. The ground can turn up a grade change nobody expected once the digging opens it up. Any of these can pull the layout off without anyone noticing right away.

Catching a problem early is the whole point. A wall is much easier to correct before the footing is poured than after. Once concrete is down and sections are stacked, a mistake gets expensive fast. By rechecking the layout at each key stage, the surveyor confirms the wall is still on its line and at its right height. Small corrections happen while they’re still cheap and simple, and the finished wall matches the plans.
