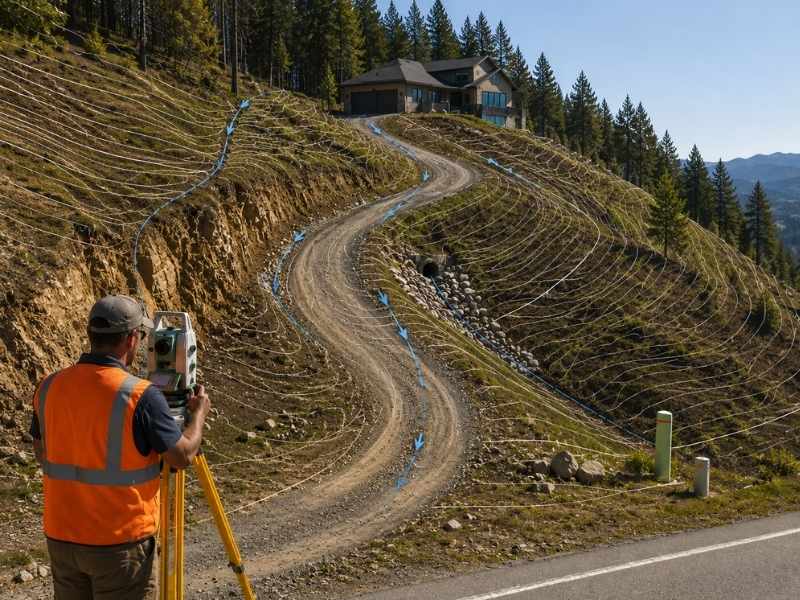

Topographic survey data provides the elevation information needed to plan a steep hillside driveway with greater accuracy. Sloping terrain can make it difficult to judge changes in elevation and ground conditions by sight alone. Measured contours, spot elevations, and other topographic information help engineers and designers evaluate driveway alignment, grading requirements, drainage, and earthwork before construction begins. Using this information early in the design process supports more informed planning and helps reduce the risk of unexpected site challenges during construction.

Natural Terrain Shapes Every Driveway Decision

Hillsides don’t slope evenly. They bench, roll, steepen in sections, and flatten in others, and those variations decide where a driveway can reasonably go.

A topographic survey records enough points to show that structure. Contour lines reveal where the ground pitches hardest and where a gentler shelf might carry a road. Rock outcrops get located, since rock either forces a detour or adds blasting to the budget. Old cuts, benches, and fill areas show up as well, and those often mark where someone already attempted something on this hill.

The elevation data lets a designer test routes against the real grade. A straight shot up the fall line might hit twenty percent, which is too steep for daily use and often too steep for code. A route traversing across the slope trades length for a gentler grade. A switchback buys more length in less horizontal space, though it needs a turning radius that works for the largest vehicle expected.

Surrounding improvements enter the picture too. Neighboring houses, existing structures, and the connection point at the public road all limit where the driveway can start and finish.

Surface Water Deserves Attention Before Grading Begins

Water runs downhill, and a driveway cut into a hillside interrupts every drainage path it crosses. Ignoring that during layout produces a road that washes out, ices over, or floods the property below.

The survey maps how water currently moves. Natural swales appear in the contours, and crews note evidence of concentrated flow. Gullies, exposed roots, deposited sediment, and scoured soil all tell part of the story. Existing culverts, ditches, and outfalls get located with elevations, along with any springs or persistently wet areas.

That information drives real decisions. A driveway crossing a defined drainage path needs a culvert sized for the flow, set at the right elevation with stable inlet and outlet conditions. A cut slope above the road needs a way to intercept runoff before it sheets across the pavement. The road surface itself needs cross slope so water leaves rather than running down the wheel track.

Erosion risk belongs in the layout conversation too. Long uninterrupted grades concentrate flow and cut channels over time. Breaking that run with cross drains costs far less than repairing a failed section every spring.

Site Constraints Can Affect Construction Options

Beyond terrain and water, physical features on the property narrow what’s possible. The survey locates them so the design accounts for them instead of discovering them during construction.

Mature trees matter in two directions. They matter for what an owner wants to keep and for what a given route would require removing. Property boundaries limit how far a road can swing, and a hillside alignment needing fifteen extra feet at a curve can easily reach a line the owner assumed was farther away. Existing structures, wells, septic components, and utility lines all occupy ground a driveway can’t use.

Retaining structures often become necessary on steep ground, and whether one works depends on measured conditions. A wall holding back twelve feet of cut is a different engineering problem than one holding four. Knowing the real height before design keeps the budget honest.

Construction access deserves early thought as well. Some hillside routes are difficult to build simply because there’s no staging area, and getting equipment to the upper end is hard before the road exists.

Shared Survey Data Improves Project Coordination

Hillside driveways pull in more expertise than flat ones. A civil engineer sets grades and drainage. A geotechnical consultant may evaluate slope stability and recommend cut and fill limits. An architect coordinates the driveway with the house it serves. A contractor builds it, and a reviewer approves it.

All of those parties need the same ground model. When each works from a different assumption about elevation, the design falls apart where the pieces meet. A recommended maximum cut slope only means something against a known existing grade. The garage floor elevation has to meet the driveway grade at the top.

A single surveyed dataset delivered in usable formats keeps everyone aligned. Contours go to the reviewers, point files to the engineer, and a surface model to anyone running earthwork calculations. All of it comes from the same fieldwork.

Revisions get easier this way too. Hillside designs get revised often, since the first concept usually turns out steeper or costlier than hoped. Testing alternatives against a fixed ground model takes hours instead of new site visits each round.

Good Survey Information Supports Long-Term Driveway Performance

A hillside driveway either works for decades or becomes a recurring expense, and the difference usually traces back to design decisions.

Drainage built around measured flow paths keeps the surface intact. Grades set within reasonable limits stay usable in bad weather and don’t punish vehicles. Cut and fill slopes designed for the actual soil and height stay stable instead of sloughing onto the road after heavy rain.

The survey also creates a record worth keeping. Later an owner may want to widen a section, add a turnaround, or extend service to an outbuilding. The original elevation data gives that work a starting point. Comparing current conditions against the earlier survey shows where ground moved and by how much.

Properties on steep ground change over time. Slopes creep, culverts silt in, and vegetation shifts where water goes. Measured baseline data makes those changes visible and manageable rather than mysterious.
